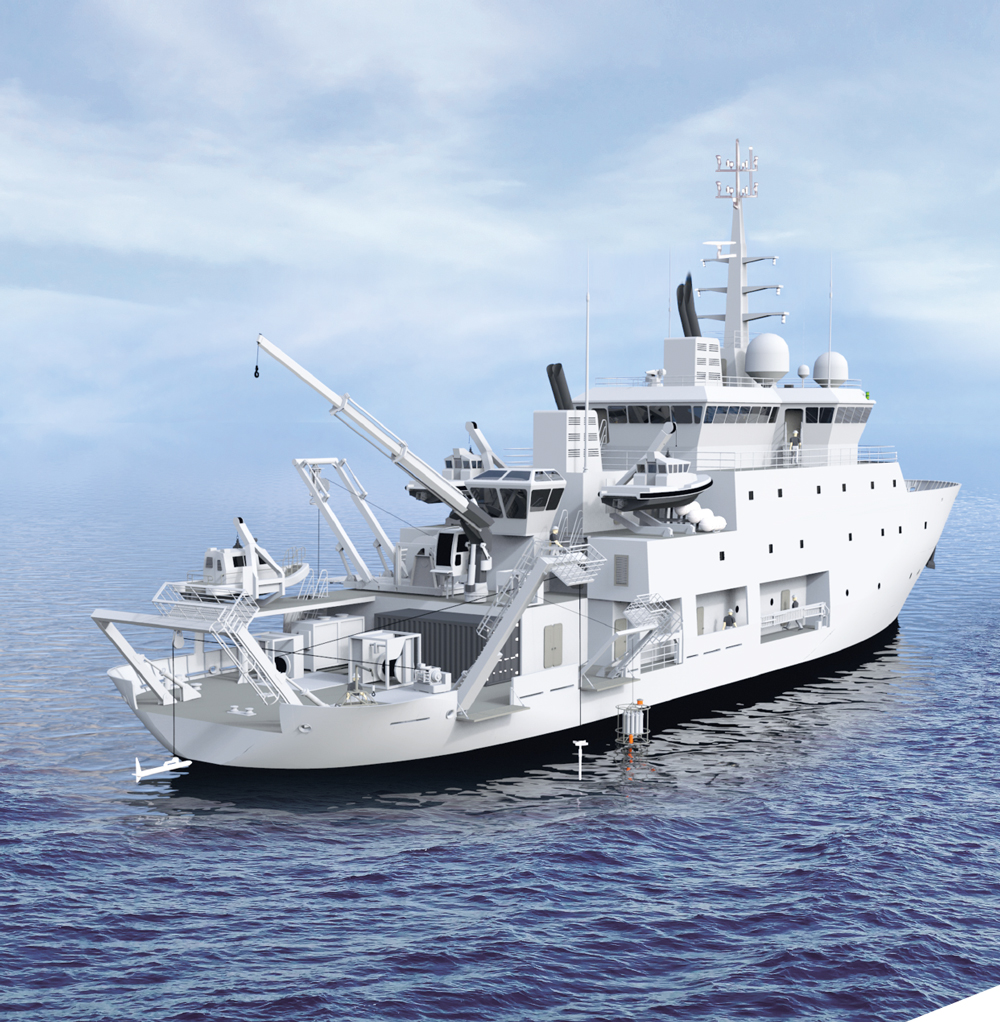

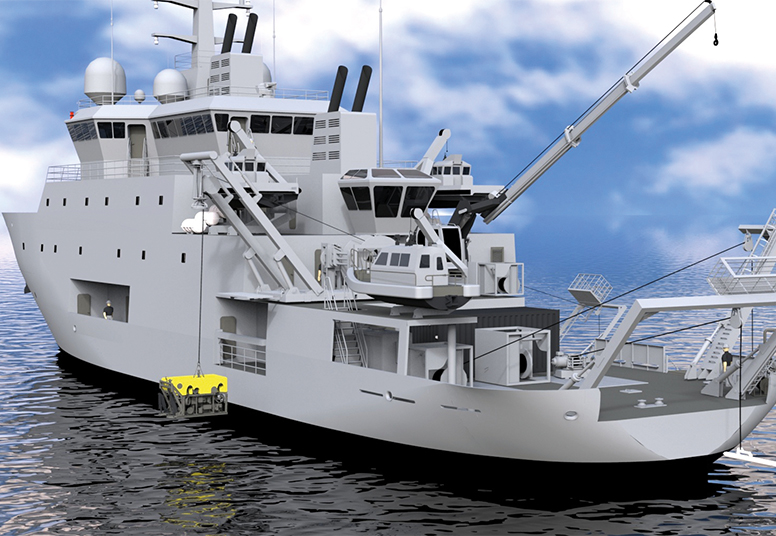

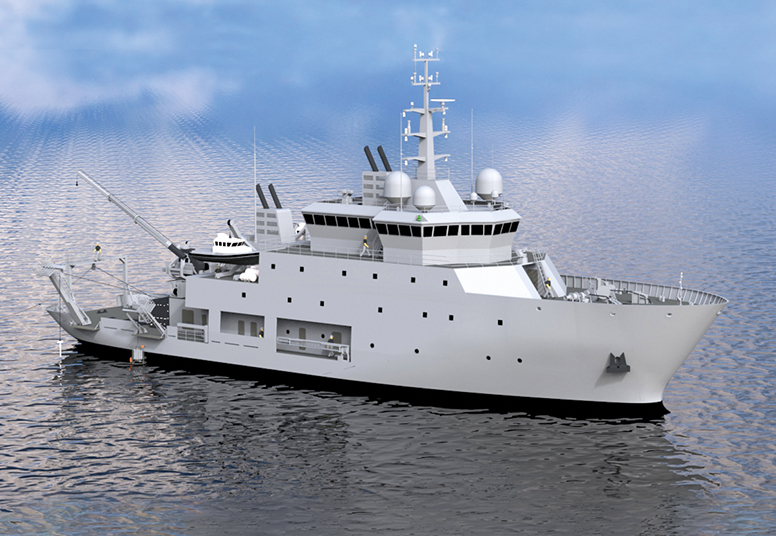

Research Vessel RV 70

Research Vessel RV 70


Research Vessel RV 70 - PDFCatalog

GENERAL

  • Length (Loa) : 69.90 m
  • Beam : 14.50 m
  • Draft  4.50 m
  • Displacement : 2270 t
  • Max Speed : 16 kts
  • Range : 3500 NM
  • Hull : Steel
  • Superstructure : Steel
  • Crew : 80
  • Classification : Turkish Lloyd

MISSIONS

  • Hydrographic Survey
  • Oceanographic Survey
  • Acoustic Survey
  • Biological Survey
  • Physical Survey
  • Geophysical Survey
  • Fisheries Research
  • Environmental Sampling
  • Rescue and Assistance at Sea

WEAPONS

  • 2 x 12.7 mm Stabilized Automatic Machine Gun

PROPULSION & ELECTRIC SYSTEM

  • Main Engines : 4 x Main Diesel Genset
  • Propulsion : 2 x Stern Drive CP Propeller
    •     2 x Bow Tunnel Thruster
    •     1 x Bow Retractable Thruster
  • Generator Set : 4 x Diesel Generator


Research Vessel RV 70 Research Vessel RV 70
Research Vessel RV 70

SURVEY EQUIPMENT

  • CTD Probe
  • Water Sampling System
  • Magnetometer
  • ADCP, LEVEL, RTK
  • Free Fall Corer
  • Multibeam Echo Sounder
  • Portable Multibeam Echo Sounder
  • Single Beam Echo Sounder
  • Portable Single Beam Echo Sounder
  • Sound Velocity Profiler
  • Plankton Net System
  • Total Station System
  • Side Scan Sonar
  • Remote Operated Vehicle (ROV)
